A Comparison of Energy Consumption in Hydrothermal Liquefaction and Pyrolysis of Microalgae

Bo Zhang, Jinsheng Wu, Zhao Deng, Changyan Yang, Chang Cui, Yigang Ding

Abstract

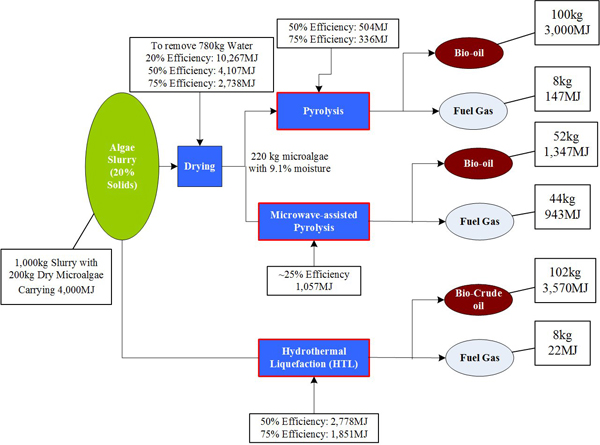

The energy requirements for converting one tonne (1,000 kg) of Chlorella slurry of 20 wt% solids via fast pyrolysis, microwave-assisted pyrolysis (MAP), and hydrothermal liquefaction (HTL) were compared. Drying microalgae prior to pyrolysis by using a spray drying process with a 50% energy efficiency required an energy input of 4,107 MJ, which is higher than the energy content (4,000 MJ) of raw microalgae. The energy inputs to conduct fast pyrolysis, MAP, and HTL reactions were 504 MJ (50% efficient), 1,057 MJ (~25% efficient), and 2,776 MJ (50% efficient), respectively. The overall energy requirement of fast pyrolysis is theoretically about 1.6 times more than that of HTL. The energy recovery ratios for fast pyrolysis, MAP, and HTL of microalgae were 78.7%, 57.2%, and 89.8%, respectively. From the energy balance point of view, hydrothermal liquefaction is superior, and it achieved a higher energy recovery with a less energy cost. To improve the pyrolysis process, developing drying devices powered by renewable energies, optimizing the pyrolysis process (specifically microwave-assisted), and improving the energy efficiency of equipment are options.

Citation: Zhang, B., Wu, J., Deng, Z.,  Yang, C., Cui, C., and Ding, Y. (2017). A Comparison of Energy Consumption in Hydrothermal Liquefaction and Pyrolysis of Microalgae. Trends in Renewable Energy, 3(1), 76-85. DOI: 10.17737/tre.2017.3.1.0013


Keywords


Microalgae; Energy Consumption; Pyrolysis; Hydrothermal Liquefaction (HTL); Microwave-assisted pyrolysis; Thermal Drying
